Dentist Furnances

SINTRA
CS.

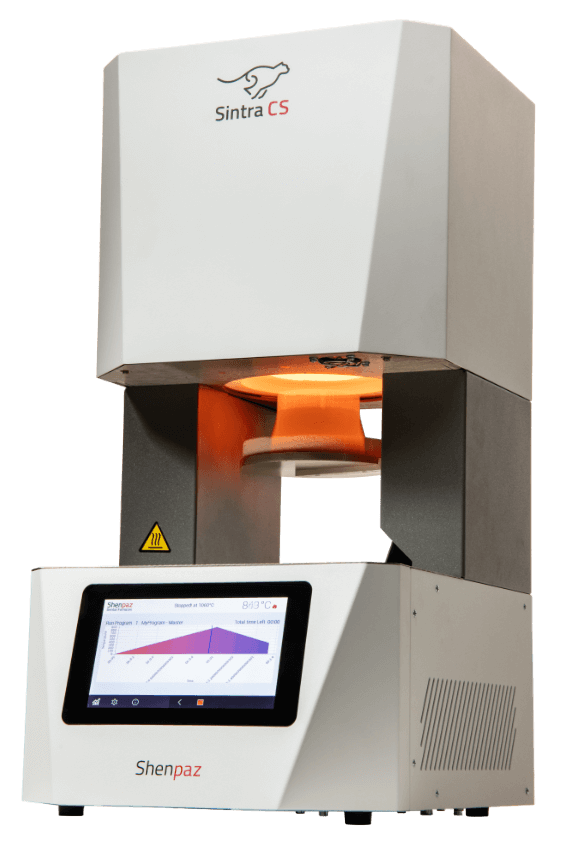

The New SINTRA CS The new way of sintering zirconia. Less than 20 minutes.



TECHNOLOGY

The visuals
It’s all about accessibility and intuitiveness. The full touch 7” LCD screen is user friendly with a superbly comfortable interface for easy programming.

Interactive Graph Screen
Multi-stage program is interactively illustrated on the graph and the cycle’s elapsed time is visually indicated by color change.
Sky is the Limit – Unlimited choices of heating, cooling stages and holding durations provide a host of programming capabilities. The furnace is universally compatible to a wide variety zirconia.

Connectivity
The furnace can be remotely monitored and operated from PC, smartphone and tablets. Connectivity via Wifi (logo) links to our platform for connecting with devices for online operation and monitoring of the furnace. This connectivity also provides service applications such as online upgrades of software versions, program downloads and system diagnostics.

FEATURES
TECHNICAL DATA
SPECIFICATIONS

Sintra CS is innovative, Small, and fast sintering Furnace

Sinters a crown in less than 20 minutes.

Extra wide table, 70mm sintering capacity of 5 individual crowns or a bridge of up to 7 crowns.

Can hold up to 3 stackable trays.

Open system , programmable to existing veriaty of zirconia materials , and can be adapted to support future materials.

Unlimited choices of heating, cooling stages and holding durations provide a wide range of programming capabilities. The furnace is universally compatible to a wide variety zirconia.

Sintering

Multi process: Crystallization, Drying, Glazing.

No installation needed, just plug & play

Very convenient access, for loading and unloading of crowns

Connectivity via WIFI or RG45 link to our platform for connecting with devices for online operation and monitoring of the furnace . This connectivity also provides service applications such as online upgrades of software versions, program downloads and system diagnostics.

Rapid cooling in the final stage that allows to hold the crown by hand.

Large touch screen
Efficient and clear graphic display
Easy and simple to use graphical user interface.

Max Temperature                             1750

Max Sintering Temperature          1600

Temperature Ramp*                       10 °C per second

Programmable Steps                      Unlimited

Number Of Programs                     3

Weight                                               ~43Kg

Width X Height X Depth (mm)   313X610X375

Net Port Connection                     WiFi, Rj45

Power Consumption                     1800W

Cylindrical sintering chamber

net dimensions                              70mm

Line Voltage                                  AC 100V – 240V

Power Frequency                         50/60Hz
