Dentist Furnances

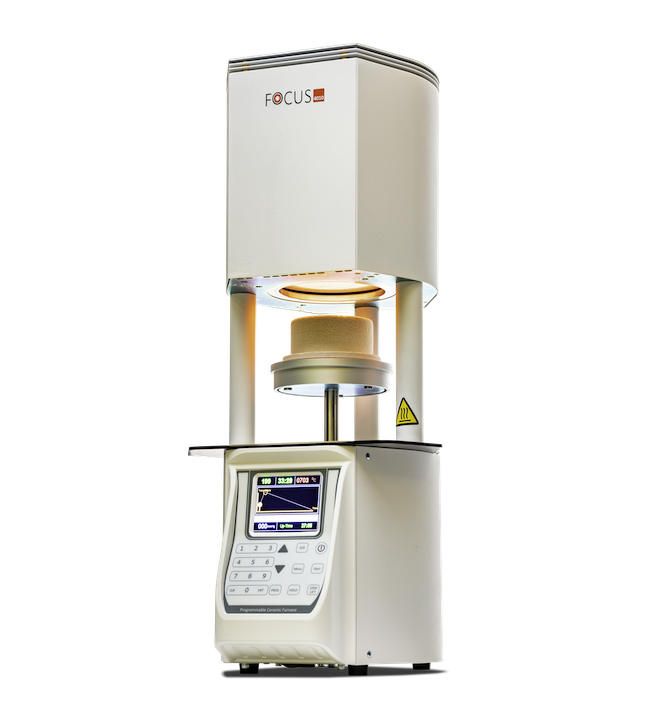

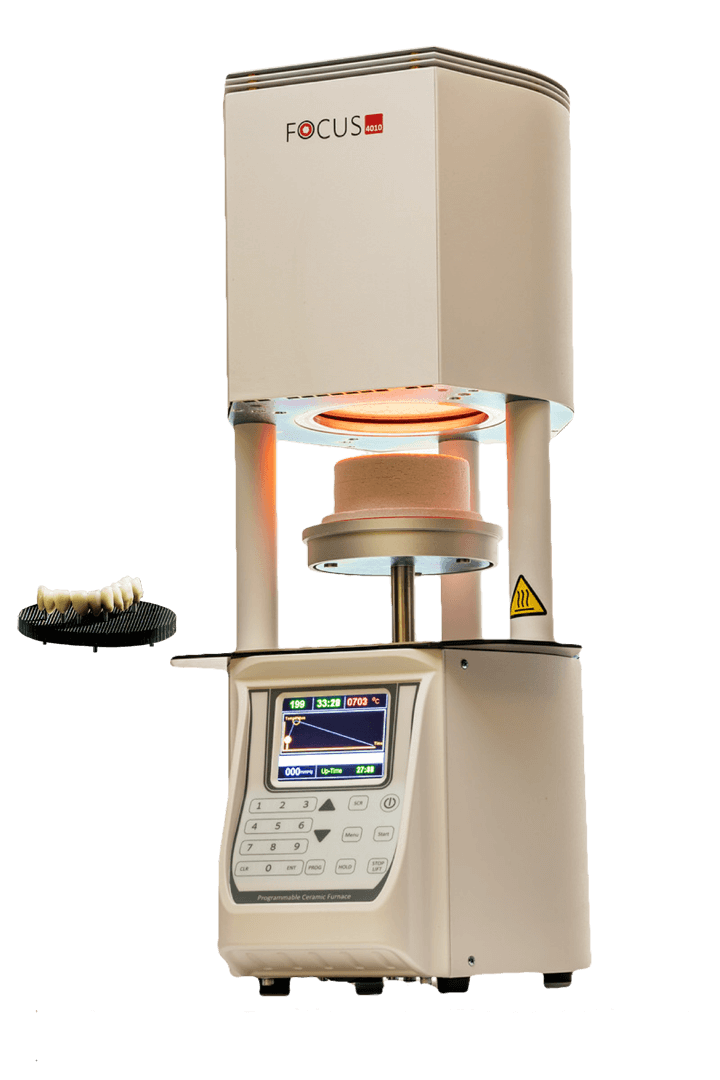

FOCUS 4010

Enjoy beautiful restoration results while staying within budget with Shenpaz small footprint porcelain firing furnaces.

Quality Restorations

  • PRECISE TEMPERATURE UNIFORMITY & CONTROL with firing temp. reach to 1180ºC (2156ºF) and accuracy of ± 1ºC
  • FULLY ADAPTABLE PROGRAMMING range handles all ceramics materials on the market today
  • GREAT PERFORMANCE original quartz tube muffle assures accurate and reliable firing every time

Time Saving

  • GREAT PERFORMANCE original quartz tube muffle assures accurate and reliable firing every time
  • POWER FAILURE PROTECTION ensures that firing resumes after return of electrical power

Energy Efficient

ENERGY SAVING features:

  • Firing chamber lined with superior insulation
  • Chamber opening tightly sealed to hold temp. ready for next cycle
  • Single phase electrical supply for low wattage consumption.
FEATURES
TECHNICAL DATA
SPECIFICATIONS

Intuitive full color digital screen displays graph of cycle progress and cycle data.

Three preset cooling steps for full control over the entire cooling process

USB port for fast transfer of program data

Max. Temperature: 1200 °C

Max. Firing temperature: 1180 °C

Temperature ramp *: 1 bis 120 °C

Programs: 200

Acoustic signal: √

Weight (kg): 13,5 kg

Width x height x depth (cm): 23x57x24 mm

USB port: √

Cylindrical combustion chamber: Ø95 mm x 65 mm

Power supply:

  • 100 V 50/60Hz, 15 Amp
  • 115 V 50/60Hz, 15 Amp
  • 230 V 50/60Hz, 8 Amp

3 years warranty

Dimensions (WxHxD): 23x57x27cm (9”x22”x9.5”)

Weight: 13.5 Kg (30 lbs.)

Display screen: 3.5”

Firing chamber: Ø 95mm x 65mm/h (Ø 3.7”x2.6”mm/h)

Firing table: Ø 90mm (Ø 3.5“)

Max Temp: from 1200°C (2192°F)

Max Firing Temp: 1180°C (2156°F)

Program options: 200
