Dentist Furnances

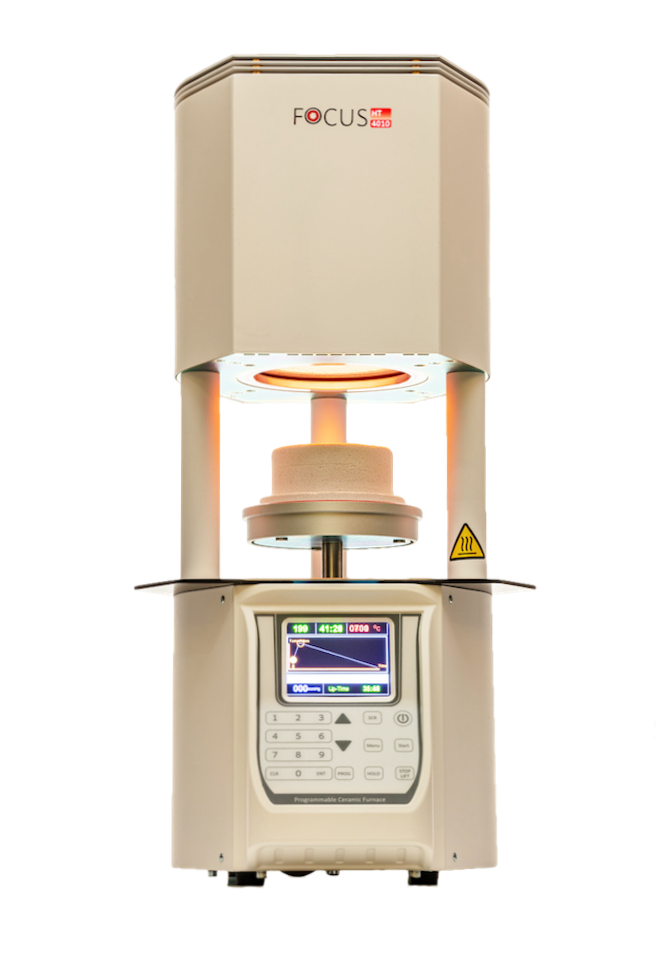

FOCUS 4010 HT

Enjoy beautiful restoration results while staying within budget with Shenpaz small footprint porcelain firing furnaces.Ideal for new laboratories with limited space or established facilities looking for a cost-effective solution to high quality firing.

Quality Restorations

  • Special crystallization programs for lithium disilicate blocks with special double vacuum feature
  • Special programs for other ceramic glass materials

Time Saving

  • GREAT PERFORMANCE original quartz tube muffle assures accurate and reliable firing every time
  • POWER FAILURE PROTECTION ensures that firing resumes after return of electrical power

Energy Efficient

ENERGY SAVING features:

  • Firing chamber lined with superior insulation
  • Chamber opening tightly sealed to hold temp. ready for next cycle
  • Single phase electrical supply for low wattage consumption.
FEATURES
TECHNICAL DATA
SPECIFICATIONS

Intuitive full color digital screen displays graph of cycle progress and cycle data.

Three preset cooling steps for full control over the entire cooling process

USB port for fast transfer of program data

Max. Temperature: 1200 °C

Max. Firing temperature: 1180 °C

Temperature ramp *: 1 bis 120 °C

Programs: 250

Acoustic signal: √

Weight (kg): 13,5 kg

Width x height x depth (cm): 23x57x24 mm

USB port: √

Cylindrical combustion chamber: Ø95 mm x 65 mm

Power supply:

  • 100 V 50/60Hz, 15 Amp
  • 115 V 50/60Hz, 15 Amp
  • 230 V 50/60Hz, 8 Amp

3 years warranty

Dimensions (WxHxD): 23x57x27cm (9”x22”x9.5”)

Weight: 13.5 Kg (30 lbs.)

Display screen: 3.5”

Firing chamber: Ø 95mm x 65mm/h (Ø 3.7”x2.6”mm/h)

Firing table: Ø 90mm (Ø 3.5“)

Max Temp: from 1200°C (2192°F)

Max Firing Temp: 1180°C (2156°F)

Program options: 200
