Dentist Furnances

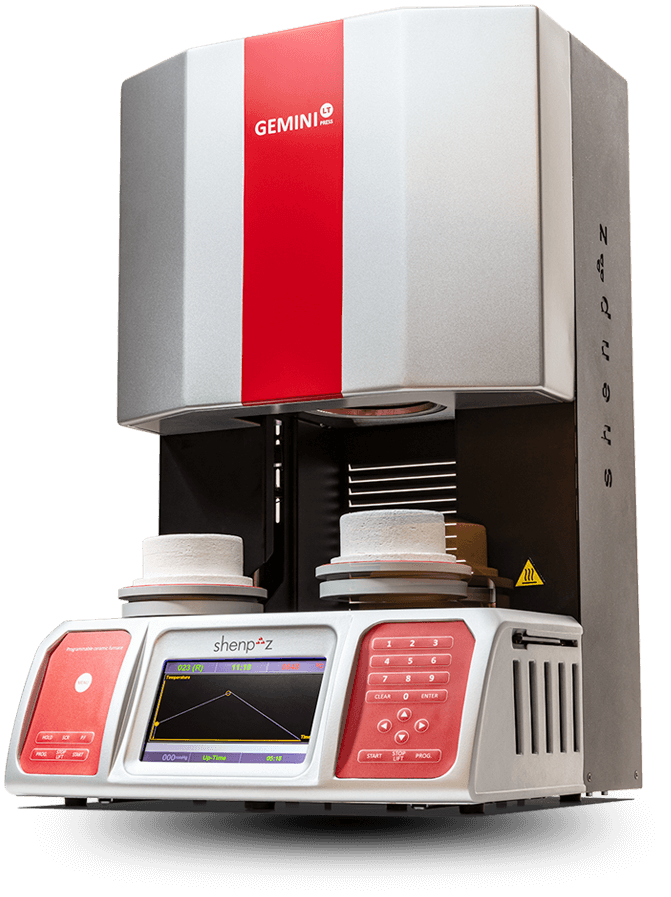

GEMINI LT /

GEMINI LT PRESS

Designed for efficiency with the only dual table model that allows technicians to program each table independently—even when one is in firing.

Quality Restorations

  • PRECISE TEMPERATURE UNIFORMITY & CONTROL with firing temp. reach to 1180ºC (2156ºF) and accuracy of ± 1ºC
  • FULLY ADAPTABLE PROGRAMMING range handles all ceramics and pressable materials on the market today
  • NON-AGGRESSIVE PNEUMATIC PRESSING SYSTEM prevents cracking and achieves greater density

Time Saving

  • FULL CUSTOMIZATION of cooling rate and hold time; pre-programmed tempering process adjusts for different cooling rates of zirconia, metal and porcelain materials
  • BOOSTS YIELD with two independent swivel tables. During the cooling phase, the mechanism automatically moves the work away from the hot zone.
  • OPTIMIZES LAB PRODUCTIVITY by allowing programming of one table while the other is in the firing chamber.
  • POWER FAILURE PROTECTION ensures that firing resumes after return of electrical power

Energy Efficient

ENERGY SAVING features:

  • Firing chamber lined with superior insulation
  • Chamber entrance tightly sealed to hold temp. ready for next cycle
  • Single phase electrical supply for low wattage consumption
FEATURES
TECHNICAL DATA
SPECIFICATIONS

Intuitive full color digital display

250 programs available for each side

USB port for fast transfer of program data

Acoustic signals that alert to furnace status

Gemini LT standard firing furnace available with 200 programs

General:

Dimensions: 450 mm x 450mm x 680mm (H);
Muffle chamber: Ø95 mm x 60 mm; Ø 3.7″x 2.6″
Combustion Table: Ø 90 mm; Ø 3.5″
Net Weight: 35Kg / 89 lbs
Heating Speed: 230 V from 10 to 100 ° C/ 50-212ºF
115V from 10 to 100 °C/50-212ºF
Pump capacity: 230v 5 A 115/100v 6.3A
Mains voltage: 230 V 1750 W 50/60 Hz
115V 1100 W 50/60 Hz
Vacuum Level Up to 980 mbar
Up to 740 mmHg
Time In Min and Sec mm:ss
Temperature Range 100 ° to 1180 ° C; 112º to 2156ºF

Transportation and storing conditions

Temperature 0°C to 40°C; 32º to 104ºF
Relative air humidity Less than 100 % rel. humidity

Operating condition

Temperature 10°C to 40°C/ 104ºF
Air Humidity 80 % rel. Humidity up to 31 °C / 88ºF

Dimensions (WxHxD): 43x43x62 cm (17”x17”x24.5”)

Gemini Weight: 28 Kg (62 lbs.)
Gemini LT Weight: 27 Kg (58 lbs.)

Display screen: 7”

Firing chamber: Ø 95mm x 65mm/h (Ø 3.7”x2.6”/h)

Firing table: Ø 90 mm (Ø 3.5“)

Temperature range: 100°C-1180°C
(112°-2156°F)

Pressure: 4.2 Bar
